GL6250
The GL6250 enables fully synchronized recording of CAN, LIN, FlexRay, CAN FD, and Ethernet networks (TCP/UDP, DLT, ADB, Raw Logging, and Automotive Ethernet). Internally, the device provides up to 16 freely configurable CAN/LIN or RS-232 and 2 FlexRay channels, 4× 100BASE-T1, and 2× 1000BASE-T1 ports. Scalable for complex testing requirements: Thanks to its high performance and expansion options, the GL6250 can be flexibly adapted to complex test requirements:
- With up to 9 GLX504 modules, the system provides up to 36 additional CAN FD channels (with SIC transceivers).
- With 5 GLX415 modules and 1 GLX427 module, additional 12 CAN and up to 80 LIN bus systems are available for time synchronous recording.
The new benchmark for automotive Ethernet:
With up to 3 GL5450 (extender mode), the GL6250 can be expanded by 60 x 100BASE-T1, 18 x 1000BASE-T1 ports and expanded up to 12x 2500Base-T1 and additionally up to 2 VN5240 for 24 more ports.
VN5240 – Supported IEEE Standards:
10BASE-T1S · 100BASE-T1 · 1000BASE-T1 · MultiGBASE-T1 · MultiGBASE-T
Information Sheet
All key details about the GL6250
can be found in our information sheet.
AREAS OF APPLICATION
- Automated logging
- Rest bus simulation
- Automated data transfer
- Automated reconfiguration
- Fleet operation and observation
- Switching to sleep mode during bus inactivity
- Wake up of data logger during bus activity
- Automatic trigger
- CCP/XCP on CAN/CAN FD/FlexRay/Ethernet
(100Base-T1/1000Base-T1/MultiGBase-T1) - Vehicle diagnostics
- DLT (Diagnostic, Log and Trace)
- Customer specific communication protocols
- Fleet operation and observation
- Field testing
- Summer and winter testing
- Damage analysis (rainflow classifications)
- Online data transfer
- Online configuration transfer
- Online signal representation and analysis
- Support of data logger measuring system on site with the customer
- Implementation of measuring tasks in data logger configurations
- Tracing of issues in the vehicle
- Analysis of logged data of the vehicle
- Customer specific solutions for individual requirements
- Implementation of customer specific web sites on the data logger (GLWebDisplay)
- Setting up of measuring systems in the vehicle
Online data transfer of internal 4 x 100BASE-T1 and 2 x 1000BASE-T1 Ethernet ports
Flexibly expandable with up to 9 GLX504 and additional extenders like GLX415 and GLX427
2 SFP+ slots (each 10 Gbit) for connecting Automotive Ethernet extenders
CCP/XCP on CAN, CAN FD, FlexRay and Ethernet
Sending any, freely configurable messages
Selective recording with extensive trigger and filter conditions
Classification function
Data transfer via LAN, USB and mobile radio
High write speed of up to 1.6 GBytes/s
Interfaces
Communication
Features
Logging Function
Classifier Function
Additional Features
Interfaces
- Up to 64 CAN interfaces (up to 52 of them supporting CAN FD)
- Up to 80 LIN interfaces
- Up to 17 UART interfaces
- Up to 96 Automotive Ethernet ports (IEEE standards: 10BASE-T1S, 100BASE-T1, 1000BASE-T1, MultiGBASE-T1 and MultiGBASE-T)
- 2 FlexRay channels
- 2 digital inputs & 2 digital outputs
- Up to 12 analog inputs
- 4 AUX+Out ports for connecting G.i.N. accessories
- 1 AUX+In for synchronizing with another GL6250
Communication
- Cellular connectivity (optional)
- 3 USB interfaces (2 host and 1 device)
- 10x 1000 Mbit/s Ethernet interfaces
- 2x 1 Gigabit (1000BASE-T) Ethernet ports
- 2 SFP+ slots for 10 Gbit/s Ethernet interfaces
Features
- CPU with 16ARM Cortex-A72 cores
- LINUX operating system with fast boot-up
- Pre-log function during system start within max. 50 ms (CAN/LIN/FlexRay) or 500 ms (Ethernet Base-T1)
- Dispatcher for monitoring the entire system
- Interactive operation via menu control
- 2 GB system startup intermediate buffering
- Data recording to changeable storage module
- 128 x 64 pixel OLED display
- Freely programmable (text- or graphics-based)
- 4 programmable event buttons
- 5 freely programmable LEDs
- Remote control with
- two user-programmable buttons (e.g., to manually trigger an event)
- two LEDs for status indication
- Battery-backed real-time clock
Logging Function
- 4 parallel running ring buffers for the recording of CAN, LIN, FlexRay and Ethernet messages, can be set between 50 KB and 4 GB
- Control of ring buffers via freely programmable start and stop trigger criteria with adjustable post and pretrigger
- Complex trigger criteria for messages, signals, inputs, keys
- Message and signal oriented logging
- Programmable recording filter for reduction of logged data
- Tachograph function
- Synchronized capture of positional data of a vehicle during test drives
- Synchronized recording of driver observations in audio format during test drives
- Synchronized recording of high-resolution color images during test drives (e.g. dashboard or vehicle environment)
- Recording and Analysis of digital and analogue input values
Classifier Function
- Free definition of 0-, 1- and 2-dimensional classification tasks
- Up to 26,000 classes per classification task
- Different classifier functions:
– minimum and maximum values of a variable
– frequency of occurrence of a criterion
– idle time and active time of a criterion
– frequency of value change of a condition or of a signal - Rainflow analysis
- No practical restriction on the recording duration
- Storage of the readout classification results in tabular form (e. g. for MS Excel)
Additional Features
- Timeout observation for messages
- Measuring on control units via XCP on CAN, on FlexRay and on Ethernet, each with Seed&Key
- Control of the programmable LEDs and of the internal and external display
- Simple integration of data bases DBC, LDF and XML/RXML in the configuration
- Many export options of log files in TXT-, ASC-, LOG-, BLF-, HDF5-, Matlab®-, ADTF- or MDF format
- Monitoring function for observation of bus communication with CANoe or CANalyzer

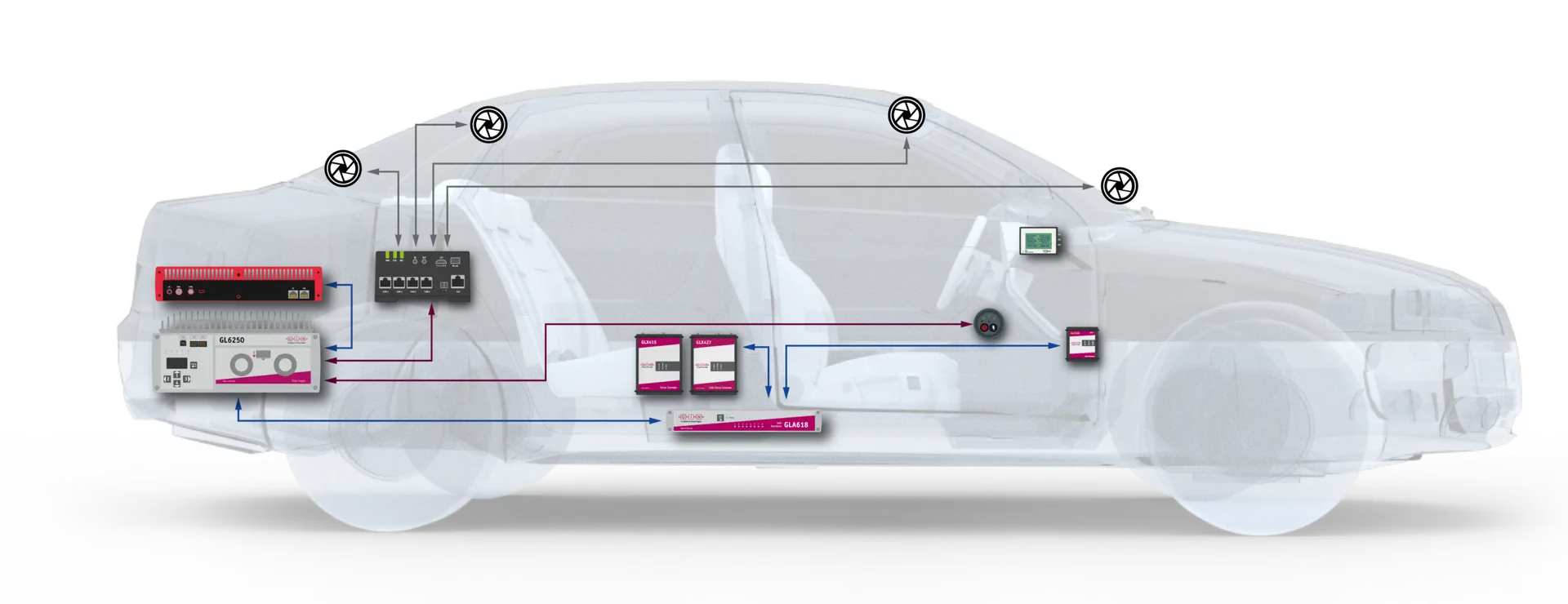

IN-VEHICLE USAGE
