GL5450
GL5450 is a data logger to record Automotive-Ethernet Data. The GL5450 can log data from up to 20 x 100Base-T1and 6 x 1000Base-T1 interfaces with a very precise time stamp resolution of 64 ns on up to 2 SSDs.
The intelligent filter function in the GL5450 allows to block unwanted, irrelevant or unauthorized data (telephone, GPS data …) completely from the recording. This fulfils the requirements of the GDPR and only the necessary data are recorded. This also reduces the effort involved in evaluating the data.
The GL5450 is controlled and configured via the GL5350/GL5370. The time synchronization of the data is via the separate SYNC line guaranteed.
The intelligent filter function in the GL5450 allows to block unwanted, irrelevant or unauthorized data (telephone, GPS data …) completely from the recording. This fulfils the requirements of the GDPR and only the necessary data are recorded. This also reduces the effort involved in evaluating the data.
The GL5450 is controlled and configured via the GL5350/GL5370. The time synchronization of the data is via the separate SYNC line guaranteed.
Information Sheet
All key details about the GL5450 can be found in our information sheet.
GL5400 series
The GL5400 series enables reliable and precise real-time recording of automotive Ethernet data (100-Base-T1, 1000-Base-T1, 2500-Base-T1)
in sync with the master logger (GL5300/GL3400/GL6250), which handles central control and configuration. With the GL5480, the series now
supports 2500-Base-T1.
- Efficient Data Recording
An intelligent filtering function reduces the data volume by specifically excluding irrelevant and personal data, supporting GDPR-compliant recording.
- Highlight Relevant Events
Additionally, a marker function is available for the targeted tagging of relevant events.
- Flexible Integration
The series supports Ethernet logging via TCP, UDP and DLT (with and without VLAN), as well as flexible master/slave configuration.
Information sheet
All key details about the GL5400-Serie can be found in our information sheet.
AREAS OF APPLICATION
- Automated Logging
- Rest bus simulation
- Gateway functionality with optional signal manipulation
- Fleet operation and monitoring
- Switching to Sleep mode when the bus is idle
- Wake-up the data logger via bus activity
- XCP on Ethernet (100Base-T1/1000Base-T1)
- Vehicle disagnostics
- DLT (Diagnostic, Log and Trace)
- Customer specific communication protocols
- Fleet operation and observation
- Field testing
- Summer and winter testing
- Supervising data logger measuring systems on-site with the customer
- Converting measurement tasks into data logger configurations
- Tracking of problems in the vehicle
- Analysis of logged data from the vehicle
- Customer specific solutions for specific requirements
- Implementing measuring systems in the vehicle
Easily controllable and configurable via GL5350/GL5370
High timestamp resolution for Ethernet frames (64 ns)
High storage capacity with 2 exchangeable SSDs
Standalone tool for time-synchronous recording of automotive Ethernet 100-/1000Base-T1
Sleep mode and wake-up synchronous with the data logger

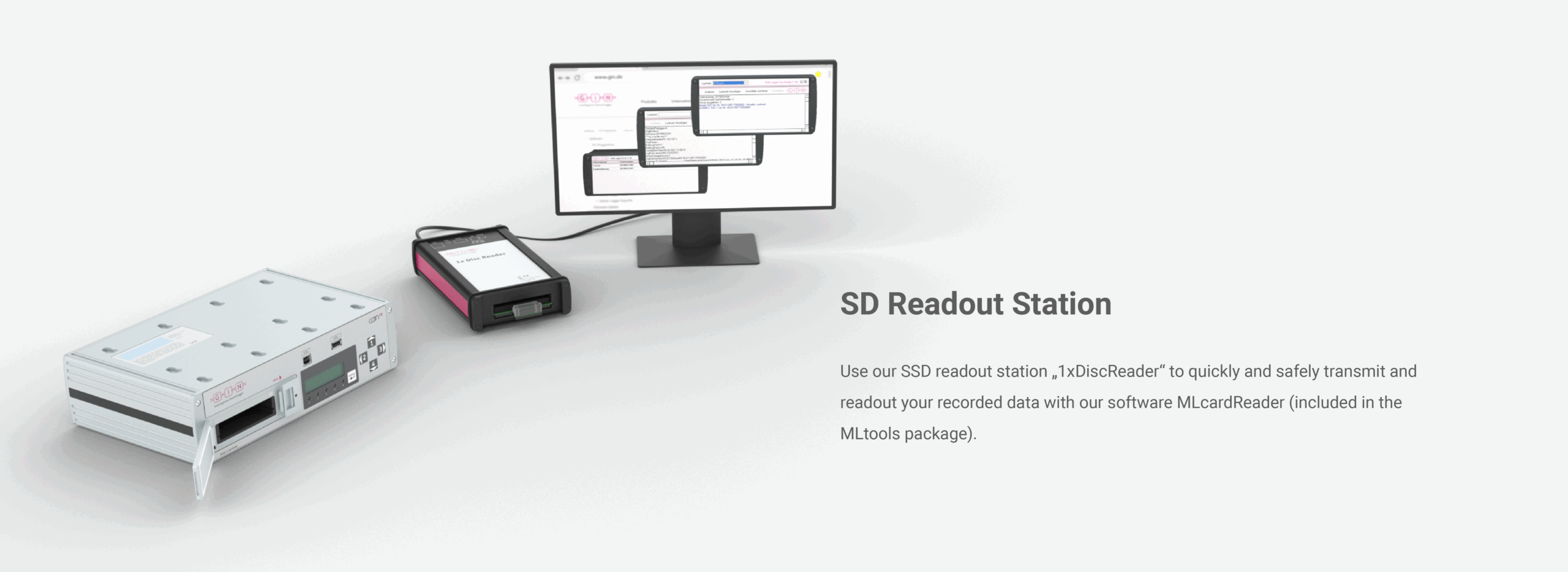

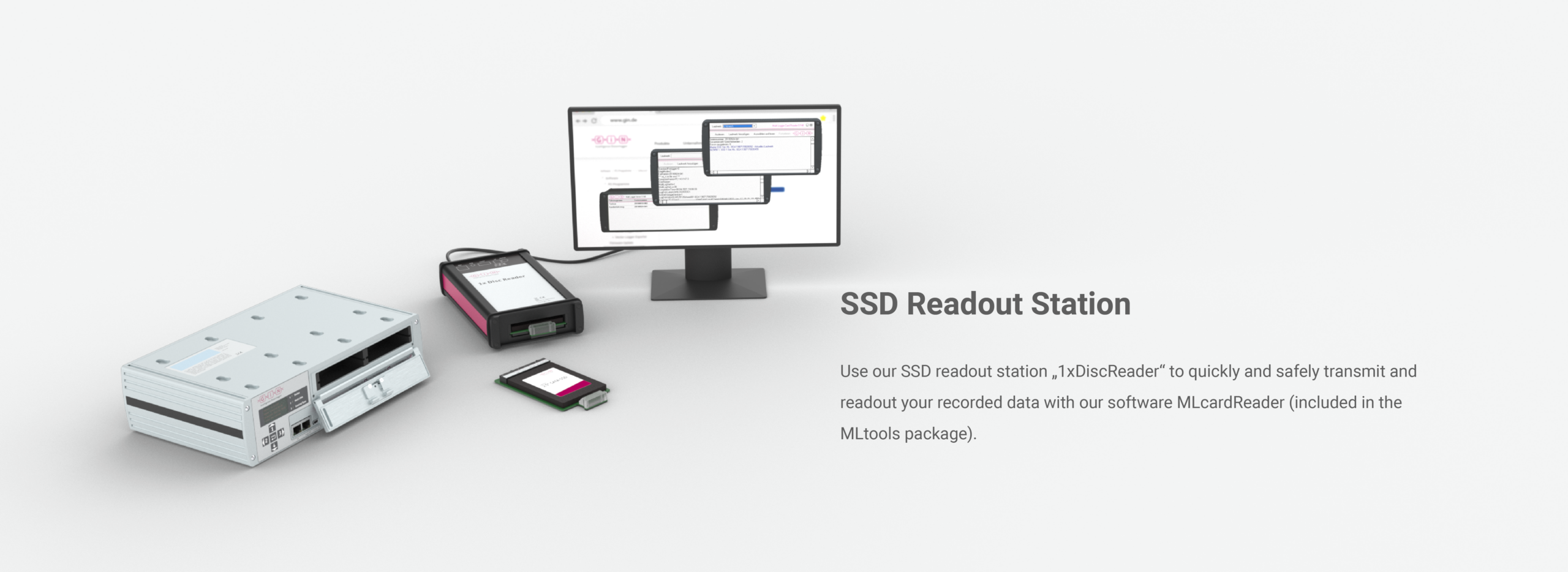

Fast access to measurement data via SSD
Easily controllable and configurable via GL5350/GL5370
High timestamp resolution for Ethernet frames (64 ns)
High storage capacity with 2 exchangeable SSDs
Fast access to measurement data via SSD
Sleep mode and wake-up synchronous with the data logger
Configuration of system-relevant/critical connections (critical ports)
Interfaces
Communication
Features
Logging Function
Interfaces
- 20x 100Base-T1 links (10 Taps) in GL5450 and GL5480
- 6x 1000Base-T1 links (3 Taps) in GL5450
- 4x 1000Base-T1 links (2 Taps) and 4 2500-Base-T1 (2 Taps) in GL5480
- 1 AUX+In for connection to the GL5300 series data logger
- 1 AUX+Out for connecting accessories
Communication
- 2x 1 Gigabit (1000BASE-T) Ethernet interfaces
- 1 Mini-USB interface
Features
- System startup within max. 250 ms
- 2 GB ring memory for buffering the data
- 3 status LEDs
- 128 x 64 pixel OLED display
- 5 keys for navigating display menus
- Controllable and configurable via the GL5300/GL3400/GL6250 data logger
- 2 external SSDs for storing the recorded automotive Ethernet data
- Power supply and temperature range suitable for automobiles
Logging Function
- Time-synchronous data recording to the data from GL5300/GL3400/GL6250
- Programmable recording filter of data packets (up to 256 filter definitions) to reduce the logging data (destination/source port number, destination/source MAC address, destination/source IP address …)

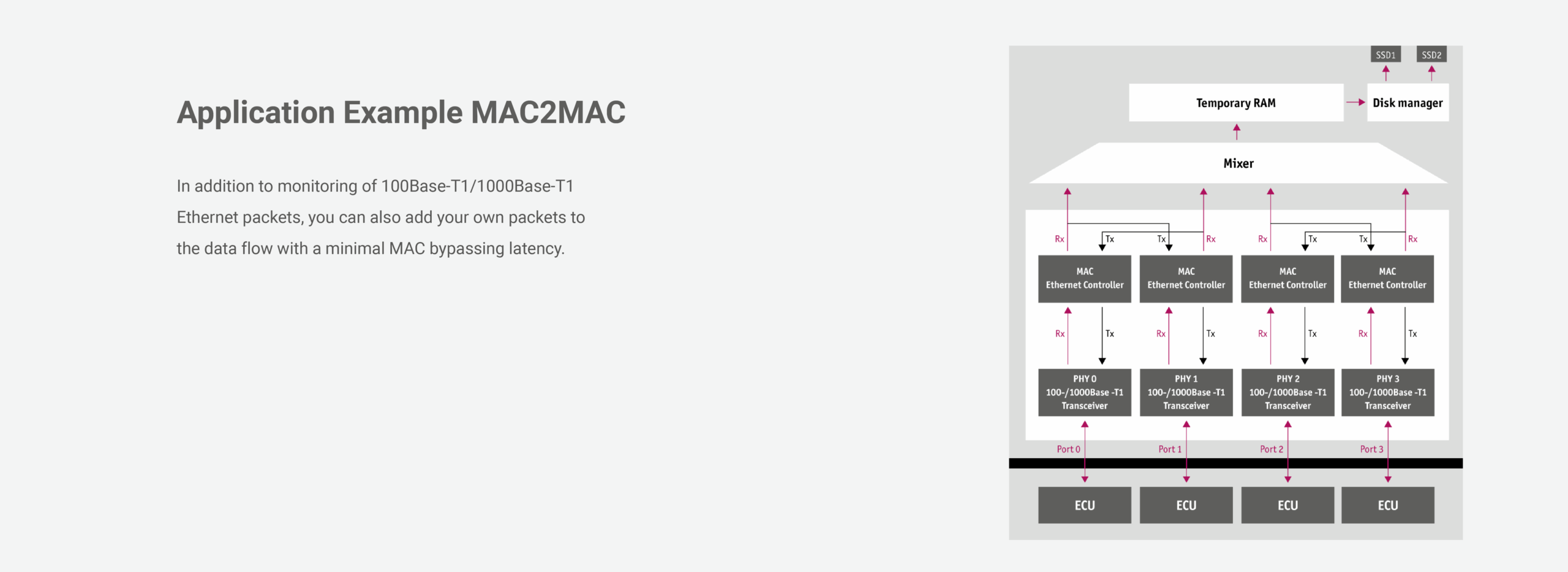

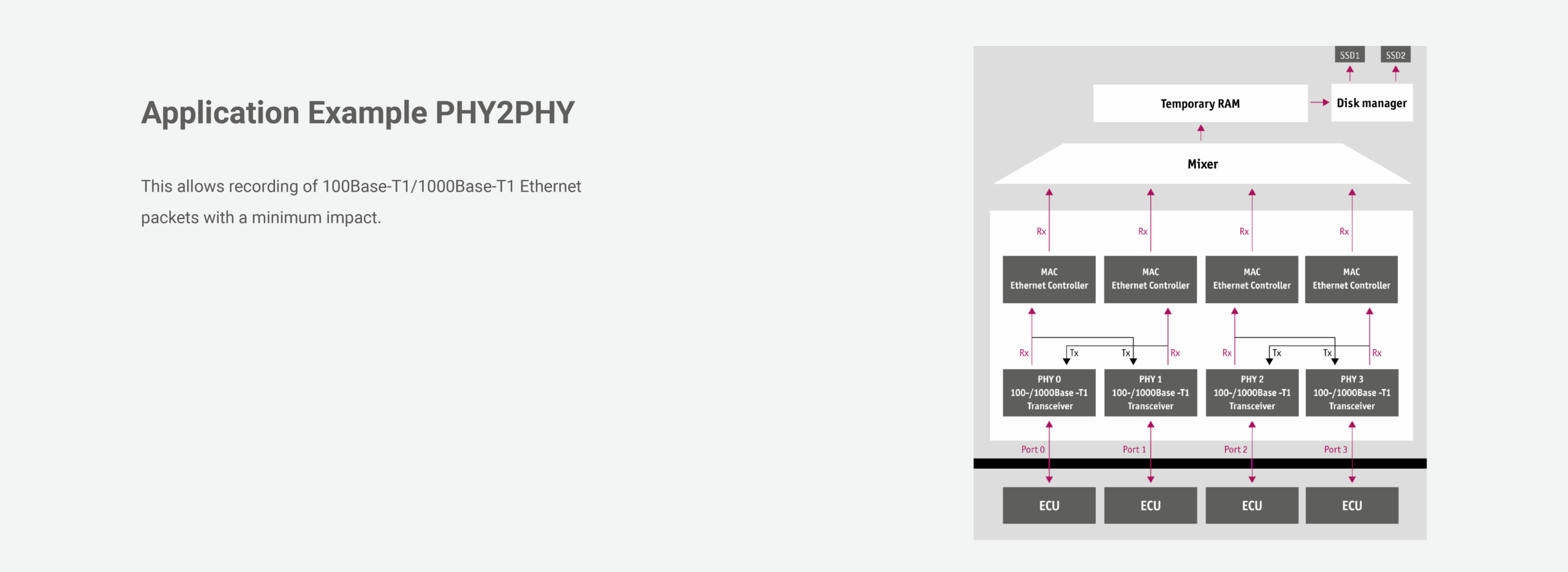

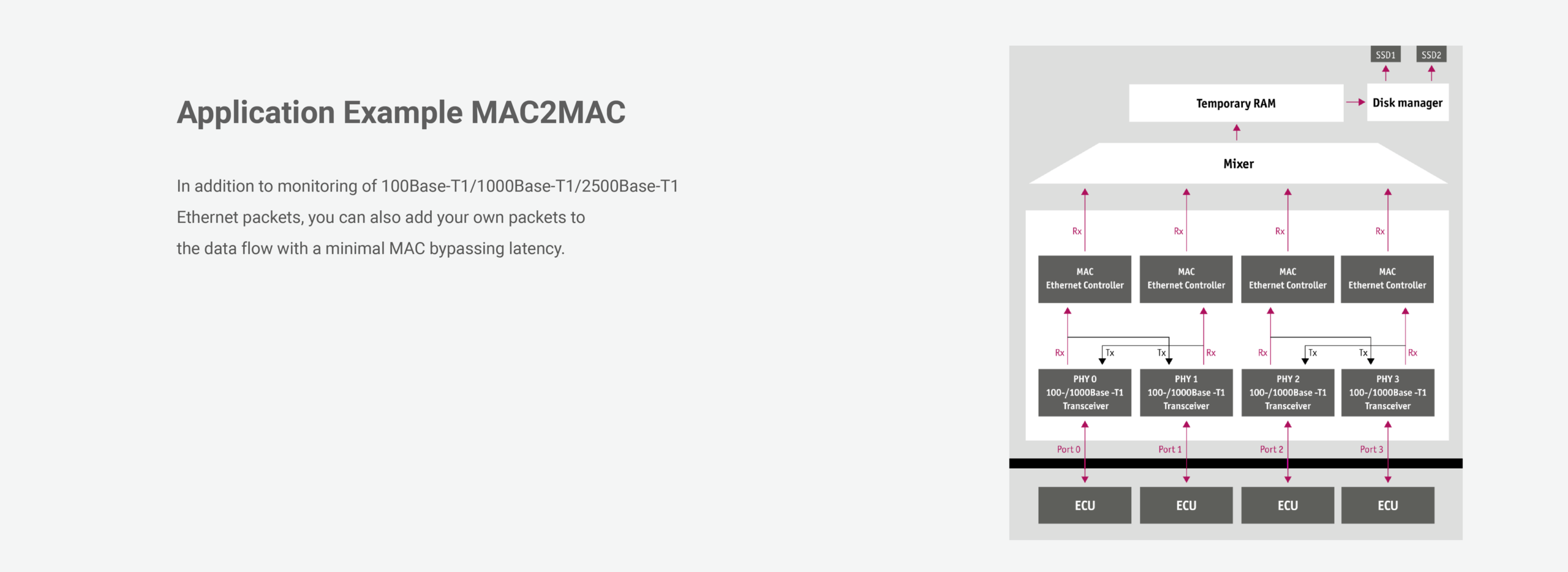

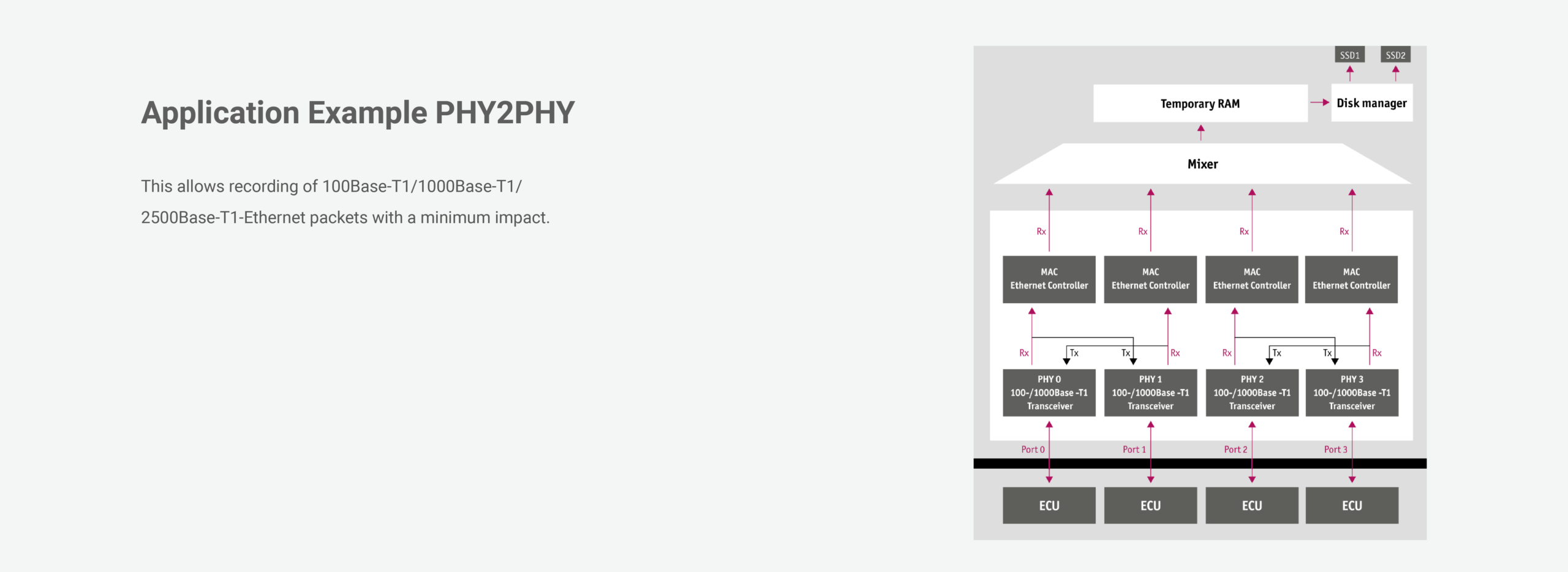

- Supporting the application MAC2MAC & PHY2PHY
- TCP/UDP logging via VLAN in combination with the data logger GL5300/GL3400/GL6250
- Defining of critical ports (no disruption of route in switched-on state)
- Sending of Ethernet data via TCP/UDP and Raw-Ethernet from GL5300/GL3400/GL6250 via GL5400
Interfaces
Communication
Features
Logging Function
Interfaces
- 20 independent 100BASE-T1 (OPEN Alliance BroadR-Reach) Ethernet ports or 10 network taps
- 6 independent 1000BASE-T1 (OPEN Alliance BroadR-Reach) Ethernet ports or 3 network taps
- 1 AUX+In for connection to the GL5300 series data logger
- 1 AUX+Out for connecting accessories
Communication
- 2x 1 Gigabit (1000BASE-T) Ethernet interfaces
- 1 Mini-USB interface
Features
- System startup within max. 250 ms
- 2 GB ring memory for buffering the data
- 3 status LEDs
- 128 x 64 pixel OLED display
- 5 keys for navigating display menus
- Controllable and configurable via the GL5300 series data logger
- 2 external SSDs for storing the recorded automotive Ethernet data
- Power supply and temperature range suitable for automobiles
Logging Function
- Time-synchronous data recording to the data from GL5300 series
- Programmable recording filter of data packets (up to 256 filter definitions) to reduce the logging data(destination/source port number, destination/source MAC address, destination/source IP address …)
- Supporting the application MAC2MAC & PHY2PHY
- TCP/UDP logging via VLAN in combination with the data logger Series GL5300
- Defining of critical ports (no disruption of route in switched-on state)
- Sending of Ethernet data via TCP/UDP and Raw-Ethernet from GL5300 via GL5450

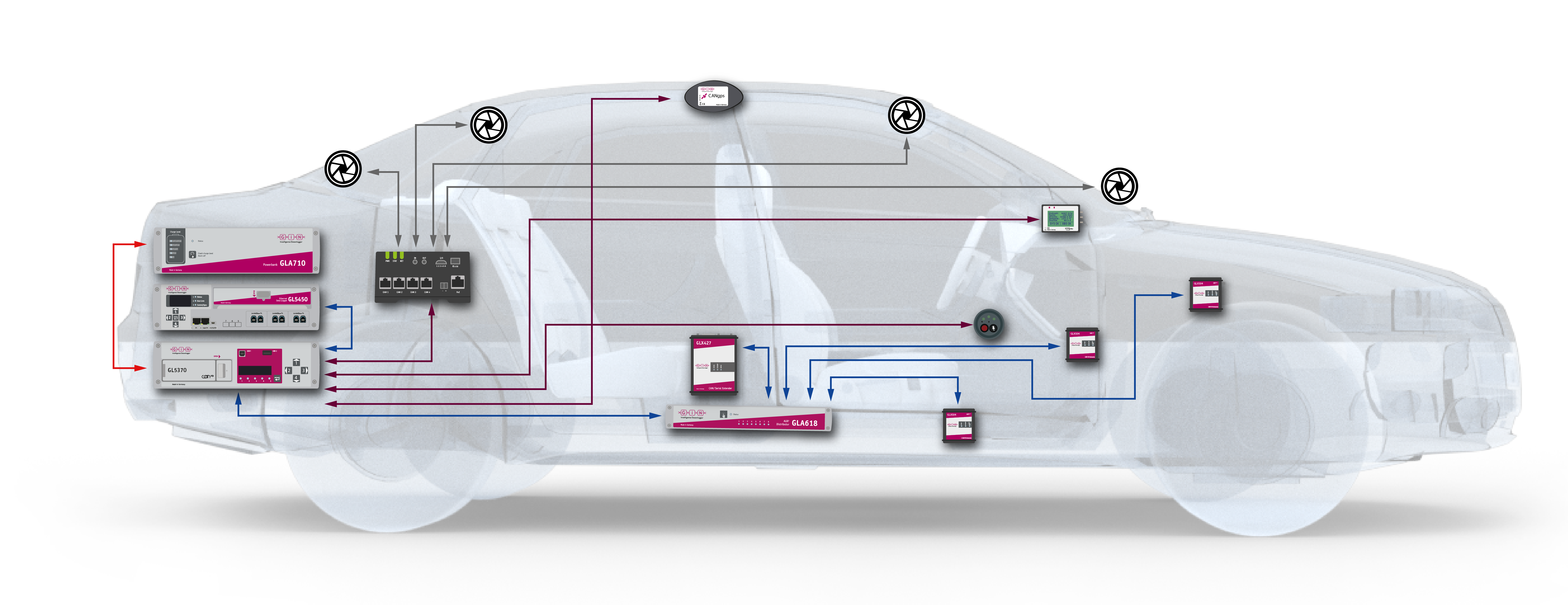

IN-VEHICLE USAGE
