GL5300 series
Modern vehicles are increasingly equipped with intelligent driver assistance systems, complex multimedia components, and technologies for autonomous driving. These innovations generate massive amounts of data, making troubleshooting during the development phase more challenging.
Your Benefits with the GL5300 Series:
- Time-saving test drives: Shorter testing phases and fewer drives, without compromising test quality.
- Compatibility with various systems: Synchronous recording of CAN/LIN bus systems, MOST/FlexRay networks, CAN FD buses, and Automotive Ethernet (100/1000Base-T1).
- Powerful and intelligent: The GL5300 series adapts to the growing demands of new vehicle generations.
Information Sheet
GL5300 series: All Key Details
at a Glance – Get Informed Now!
AREAS OF APPLICATION
- Automated logging
- Rest bus simulation
- Gateway functionality with optional signal manipulation
- Automated data transmission
- Automated reconfiguration
- Fleet operation and observation
- Switching to Sleep Mode during bus inactivity
- Waking up the data logger on bus activity
- Automatic triggers
- CCP/XCP on CAN/CAN FD/FlexRay/Ethernet
(100Base-T1/1000Base-T1) - Vehicle diagnostics
- DLT (Diagnostic, Log and Trace)
- Customer specific communication protocols
- Fleet operation and monitoring
- Wide-area testing
- Summer and winter testing
- Damage analysis (Rainflow classifications)
- Online data transfer
- Online configuration transfer
- Online signal representation and analysis
- Support for data logger measurement systems at the customer site
- Implementing measurement tasks into data logger configurations
- Tracking of vehicle-related issues
- Analysis of logged data from the vehicle
- Customer-specific solutions for specific requirements

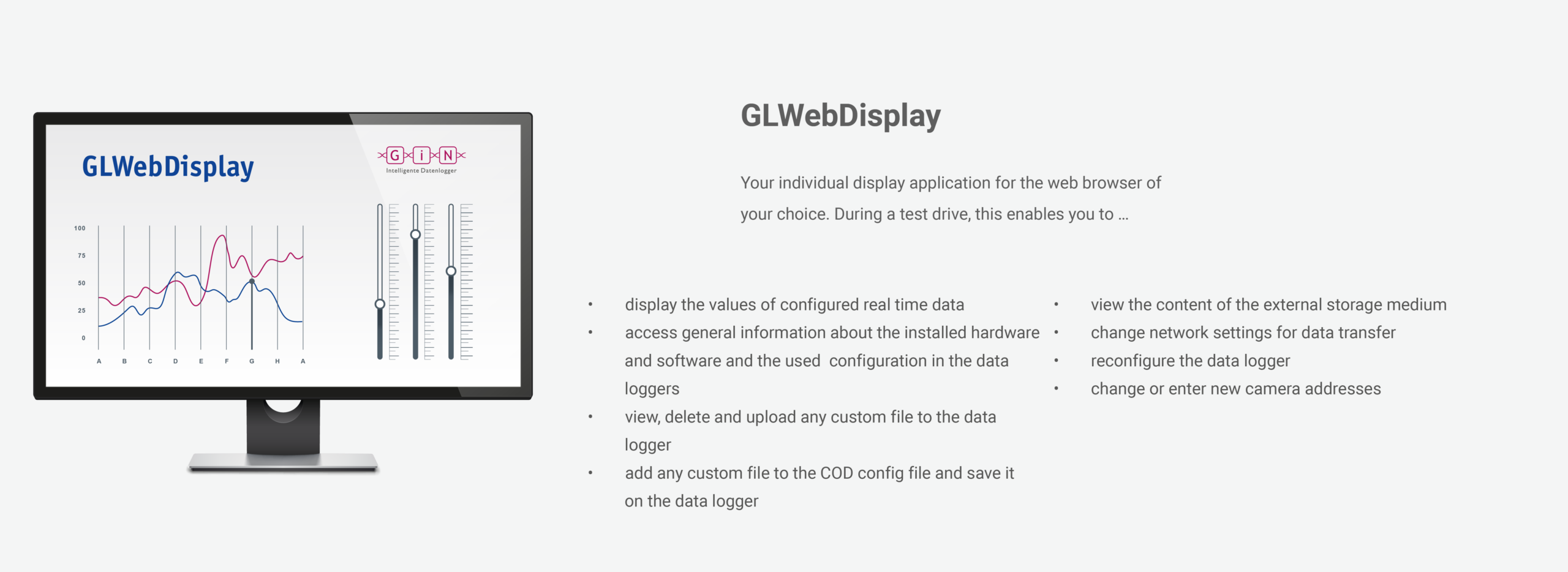

- Implementation of custom web pages on the data logger (GLWebDisplay)
- Commissioning of the measurement system in the vehicle
Standalone tool for time-synchronous recording of the bus systems in modern vehicles
Short start-up time and low power consumption
Sleep mode with active wake-up
Supports diagnostic and CCP/XCP

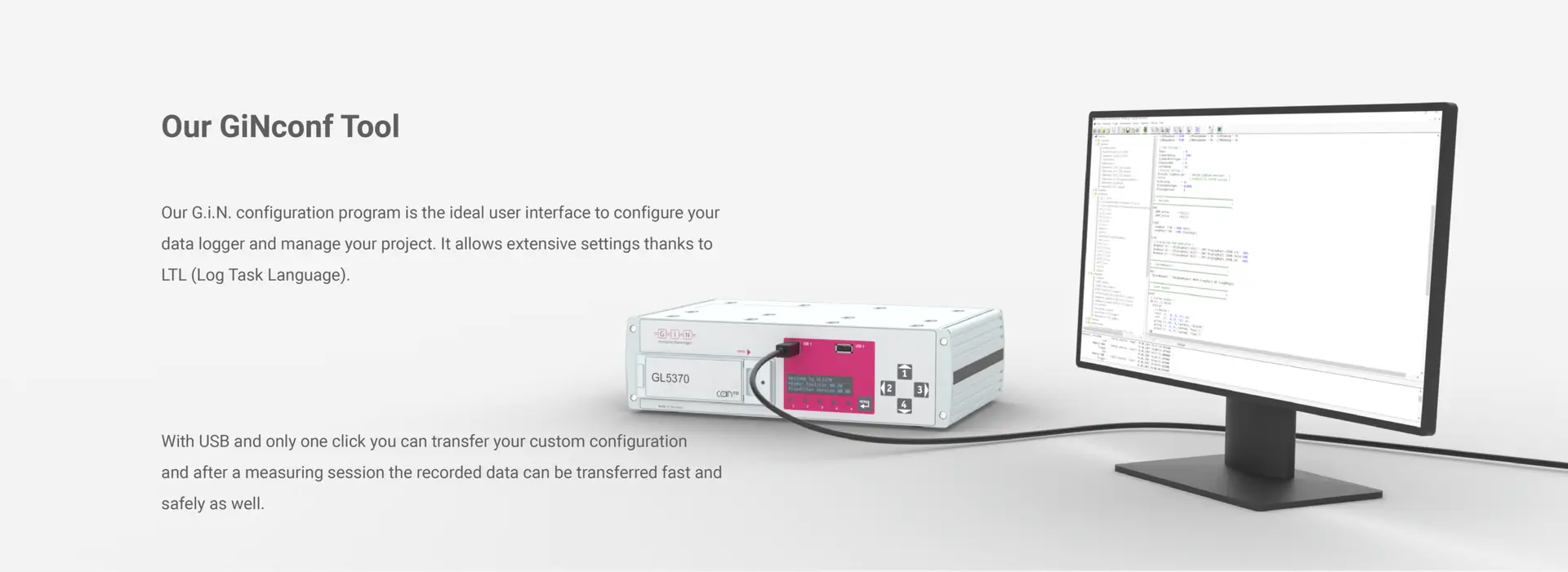

Offers a wide range of configuration options

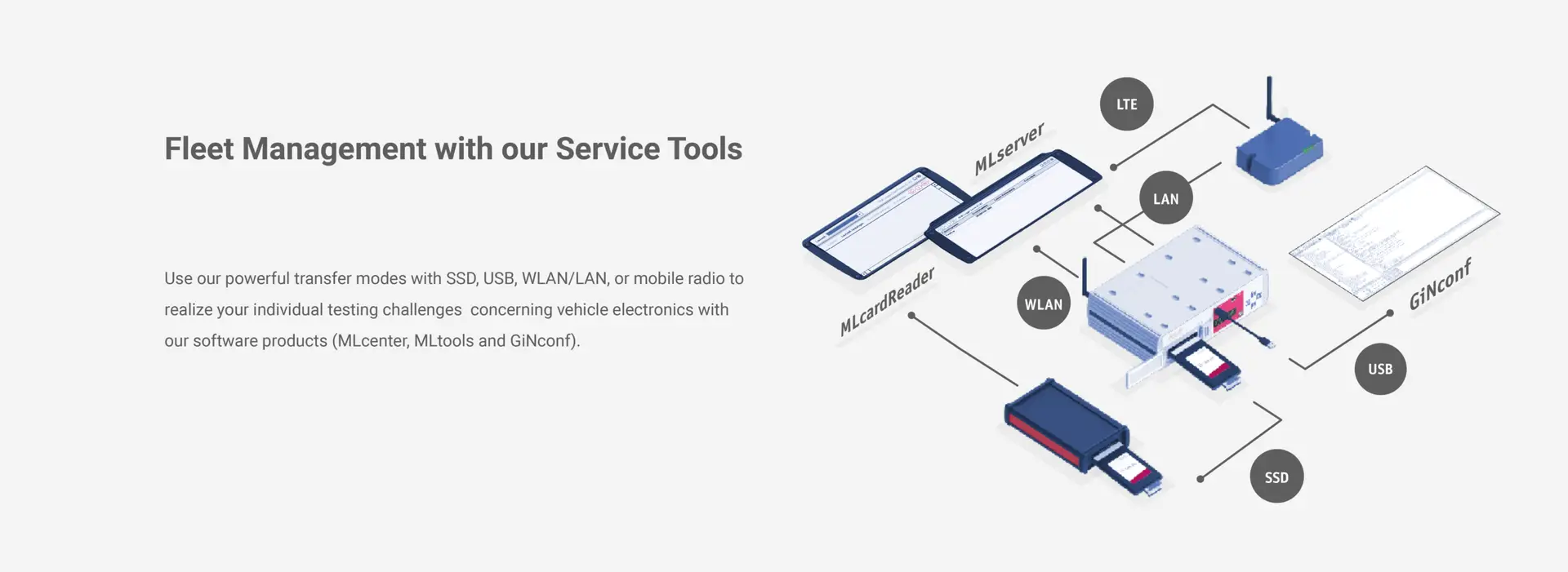

Fast access to measurement data via various readout options
Remote maintainability via mobile radio and WLAN
Interfaces
Communication
Features
Logging Function
Classifier Function
Gateway Function
Further Functions
Interfaces
- Up to 56 CAN interfaces (of which up to 32 CAN FD capable)
- Up to 36 LIN interfaces
- Up to 12 UART interfaces
- Up to 60 independent 100Base-T1 (OPEN Alliance BroadR-Reach) Ethernet ports or 10 network taps
- Up to 18 independent 1000Base-T1 (OPEN Alliance BroadR-Reach) Ethernet ports or 3 network taps
- Up to 12 independent 2500Base-T1 (OPEN Alliance BroadR-Reach) Ethernet ports or 6 network taps
- 2 FlexRay channels
- 4 digital inputs & 4 digitale outputs
- Up to 12 analogue inputs
- 4 AUX connectors for connecting G.i.N. accessories
Communication
- Wireless LAN
- Mobile radio (via LTE-Router)
- 3 USB interfaces (2 Host and1 Device)
- 2 Ethernet interfaces
- 1 RS-232 interface
Features
- 2 x ARM9 processor
- LINUX operating system with fast boot-up
- Prelogfunction during system boot-up after max. 40 ms
- Programmable 8 character alphanumeric display
- Freely programmable (text or graphics based)
- 4 programmable event keys
- 5 freely programmable LEDs
- Remote control with the following features:
– two user-programmable keys, e.g. for manual triggering
– two LEDs for status indication - Battery backed real time clock
Logging Function
- 3 parallel ring memories for recording CAN, LIN, FlexRay and Ethernet messages,
adjustable between 50 kB and 400 MB - Control of ring buffers via freely programmable start and stop trigger criteria with adjustable post and pretrigger
- Complex trigger criteria on messages, signals, inputs, keys
- Message- and signal-oriented logging
- Programmable logging filter to reduce the data to log (identifier or complete channel)
- Tachograph function
- Synchronous recording of vehicle position data during test drive
- Synchronous recording of driver observations in audio form during the test drive
- Synchronous recording of high-resolution colour images during the test drive (e.g. dashboard or vehicle environment)
- Recording and evaluation of digital and analogue inputs
- Recording of the first waking message in half-sleep mode
Classifier Function
- Free definition of 0-, 1- and 2-dimensional classification tasks
- Up to 26,000 classes per classification task
- Classifier functions:
– Minimum and maximum values of a variable
– Frequency of occurrence of a criterion
– Idle time and active time of a criterion
– Frequency of value change of a condition or of a signal - Rainflow analysis for the inspection of material fatigue and stress incidents
- No practical restriction on the recording duration
- Storage of the readout classification results in tabular form (e. g. for MS Excel)
Gateway Function
- Exchange of CAN data between two or more buses
- Up to 190 independent gateways
- Blocking and forwarding configurable at message level
- Freely programmable changes to the contents of messages to be forwarded
- Conversion between different CAN baud rates and/or physical layers (low-speed, high-speed etc.)
- Forwarding from LIN to CAN and from FlexRay to CAN
Further Functions
- Timeout monitoring of messages
- Measurements on control devices via XCP on CAN and on Ethernet, each with Seed&Key
- Triggering of programmable LEDs and internal as well as external display
- Simple integration of DBC, LDF and XML data bases in the configuration
- Many export options for log files in TXT, ASC, LOG, BLF, HDF5, Matlab®, ADTF or MDF format
- Monitoring function of the the bus communication with CANoe or CANalyzer
IN-VEHICLE USAGE
Up to 5x GLX504
For each additional 4 CAN FD channels
mounted close to the bus and remote from Data Logger
CASM2T3L
For triggering with sound output
and a microphone for
voice recording
LOGview
LCD display with
16 independent and freely
programmable pages
GLA618
The AUX⁺ distributor with
8 AUX⁺ Out connections
HostCAM F44
Camera with up to
4 sensor units
Up to 2x GLA710
The UPS for an
uninterruptible supply
Up to 3x GL5400
The Automotive Ethernet Logger for up to
60x 100Base-T1
18x 1000Base-T1 Ports
12x 2500Base-T1
CANgps
Determines and sends the
position data via CAN or
RS-232 to the data logger
GLX427
For 12 additional CAN interfaces
and up to 15 serial interfaces
GLX415
For additional 15 LIN interfaces
CONNECTIVITY
GLA618
AUX⁺ splitter for simultaneous connection of multiple extension devices to one data logger
To product
GLA710
Device for an uninterruptible supply
To product
Mounting plate
For attaching the GiN products equipped with the new GiN case system
To product
GLX415
For 15 more LIN interfaces
To product
GLX427
For a further 12 CAN interfaces and up to 15 serial interfaces
To product
GLX504
For 4 further CAN FD interfaces
To product
CAN-RX-Repeater
For receiving data via 4 CAN FD channels
To product
LINprobe
2 x LIN to CAN converter
To product
CASM2T3L
Compact handset for displaying conditions, triggering events and for voice recording as well as sound output.
To product
HostCAMF44
With up to 4 sensor units for recording pictures and image sequences on data loggers
To product
CANgps
GPS receiver on CAN
To product

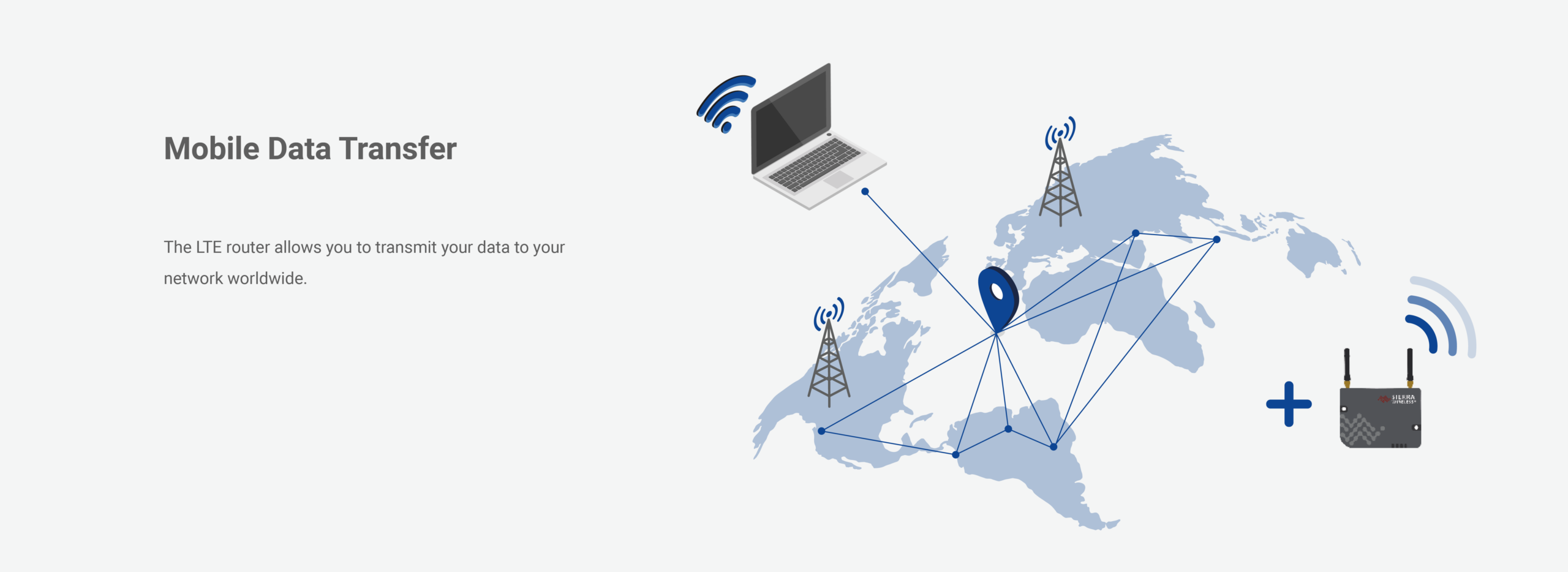

LTE Router
LTE router for mobile data transmission
To product
LOGview
Freely configurable, controllable
display with page switching and event triggering via push button
To product
CA8DL
Compact monitor for displaying digital signals and conditions via 8 LEDs
To product
CA4T4DL
Triggering events via 4 push buttons and calling up states via 4 LEDs
To product
CAS1T3L
Compact handset for displaying conditions via 3 LEDs and for triggering events via 1 push-button with additional sound output.
To product
