GL3400
The GL3400 offers all the advantages of the GL3000 series and additionally supports CAN FD for higher data rates. Thanks to significantly increased processing power and write throughput, the system can be scaled with external extenders: GLX504 (+4 CAN FD), GLX415 and GLX427 (up to 30 LIN channels).
In combination with the Automotive Ethernet data logger GL5450, the GL3400 takes over master clocking and enables time-synchronous recording of up to 20× 100Base-T1 (10 taps) and 6× 1000Base-T1 (3 taps).
The GL3400 is also equipped with 5 Ethernet interfaces including an integrated switch and, in addition to TCP/UDP logging, offers Ethernet raw logging as well as time-synchronous connection of up to
4 cameras to the bus data.
In combination with the Automotive Ethernet data logger GL5450, the GL3400 takes over master clocking and enables time-synchronous recording of up to 20× 100Base-T1 (10 taps) and 6× 1000Base-T1 (3 taps).
The GL3400 is also equipped with 5 Ethernet interfaces including an integrated switch and, in addition to TCP/UDP logging, offers Ethernet raw logging as well as time-synchronous connection of up to
4 cameras to the bus data.
Information Sheet
All key details about the GL3400 can be found in our information sheet.
APPLICATION AREAS
- Automated logging
- Rest bus simulation
- Gateway functionality with optional signal manipulation
- Automated data transmission
- Automated reconfiguration
- Fleet operation and monitoring
- Switching to Sleep mode when the bus is idle
- Wake-up the data logger via bus activity
- Automated triggers (e.g. for error memory entries)
- CCP/XCP on CAN/CAN FD/Ethernet (100Base-T1/1000Base-T1)
- Vehicle diagnostics
- DLT (Diagnostic, Log and Trace)
- Customer specific communication protocols
- Fleet operation and observation
- Field testing
- Summer and winter testing
- Damage analysis (Rainflow classifications)
- Online data transfer
- Online configuration transfer
- Online signal representation and analysis
- Support for data logger measurement systems at the customer
- Implementation of measurement tasks in data logger configurations
- Tracking of complaints in the vehicle
- Analysis of logged data from the vehicle
- Custom solutions for specific requirements

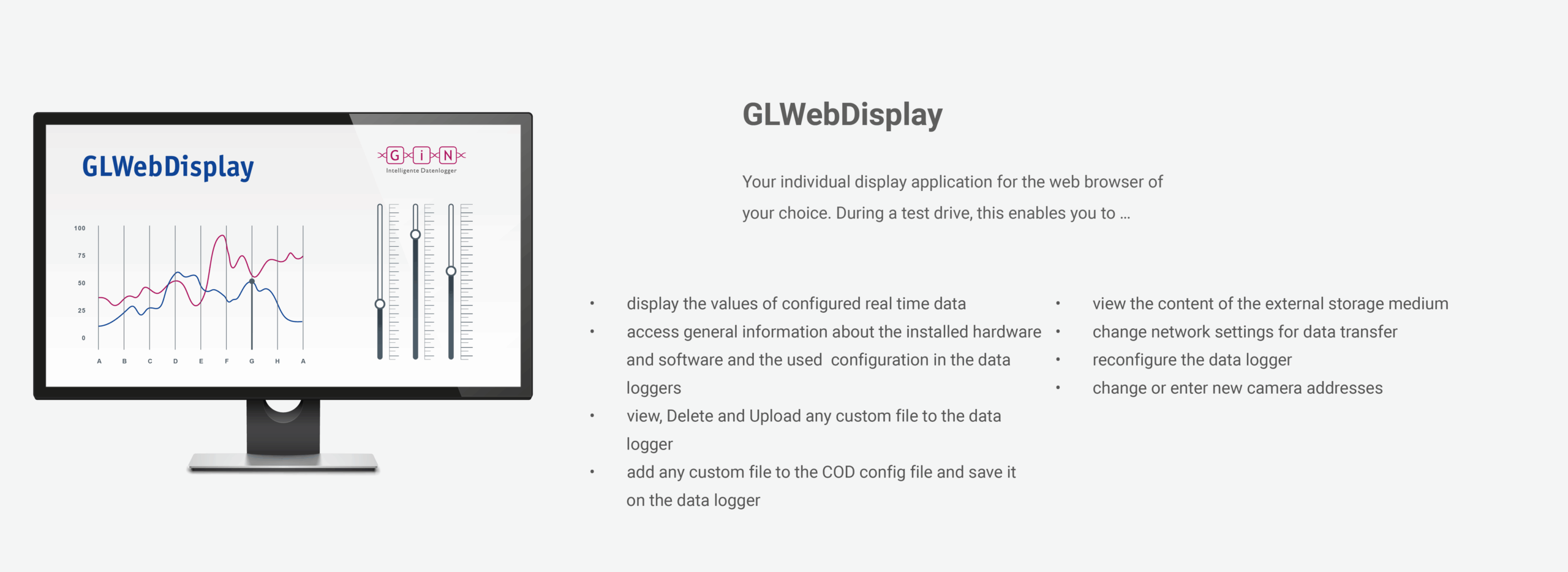

- Implementation of customer-specific web pages on the data logger (GLWebDisplay)
- Commissioning of the measurement system in the vehicle
Standalone tool for time-synchronized recording of bus systems in modern vehicles
Short startup time and low power consumption
Sleep mode with automatic wakeup
Support for diagnostics and CCP/XCP

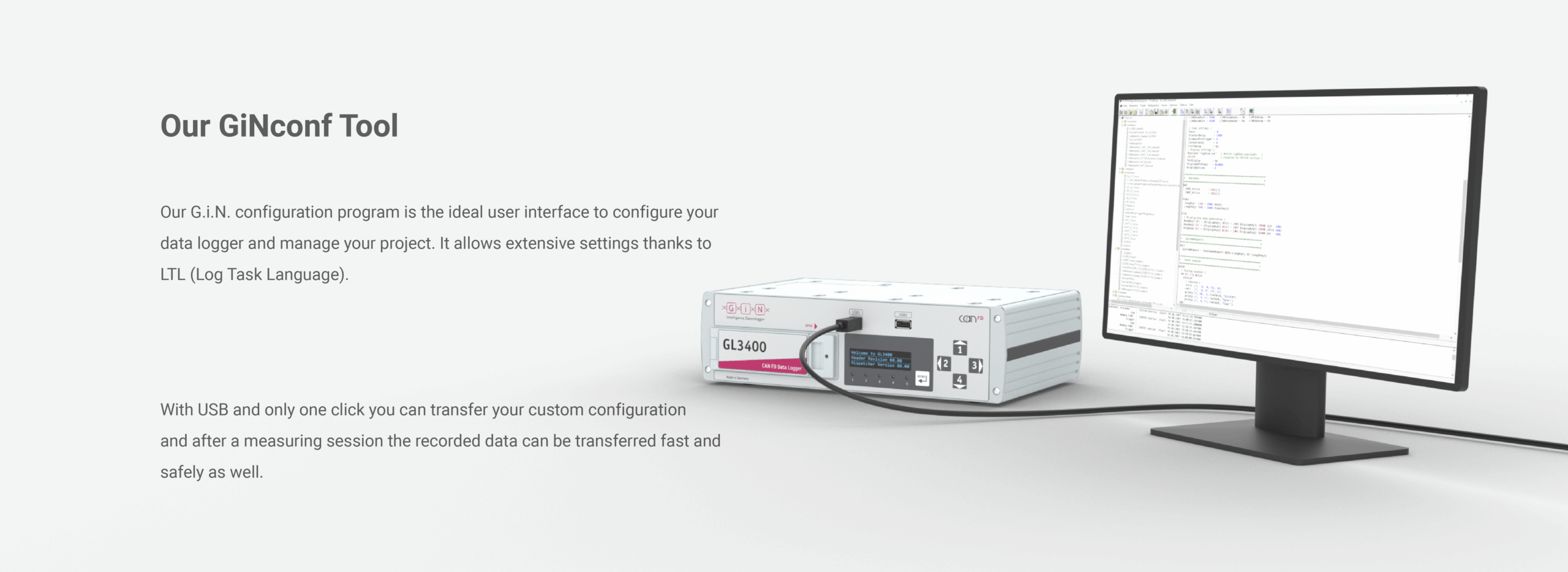

Extensive configuration options

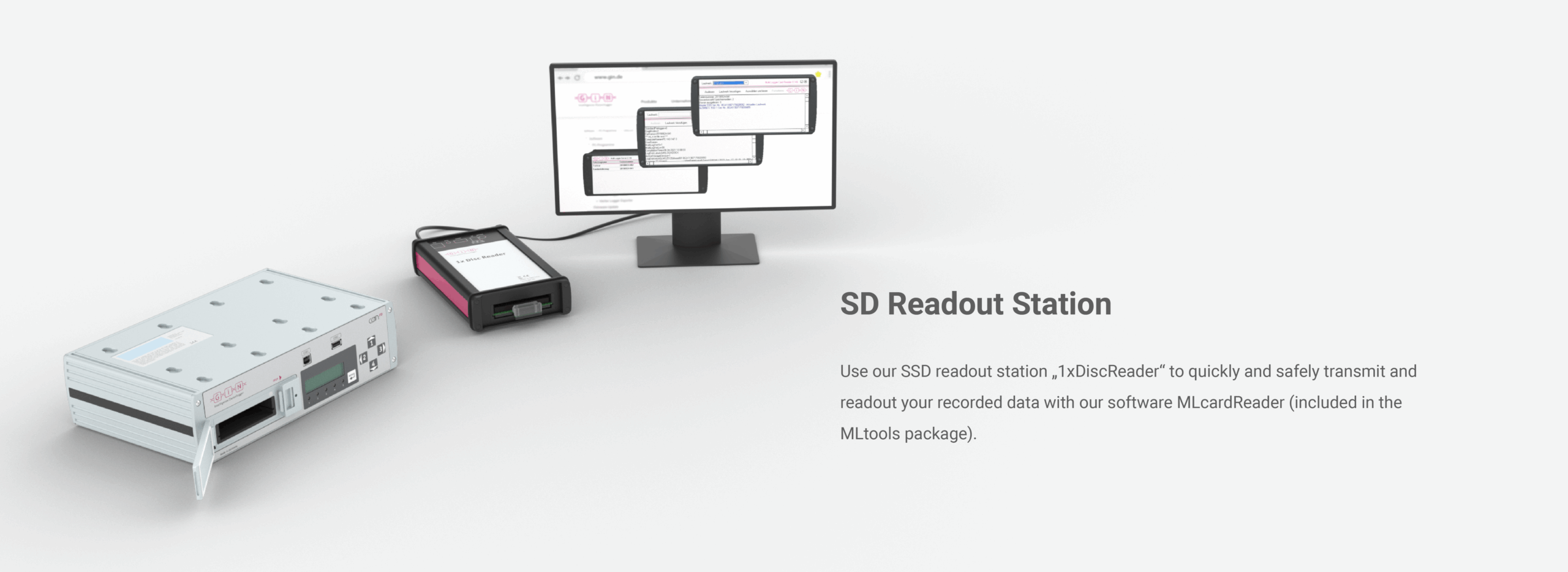

Fast availability of measurement data through various retrieval options

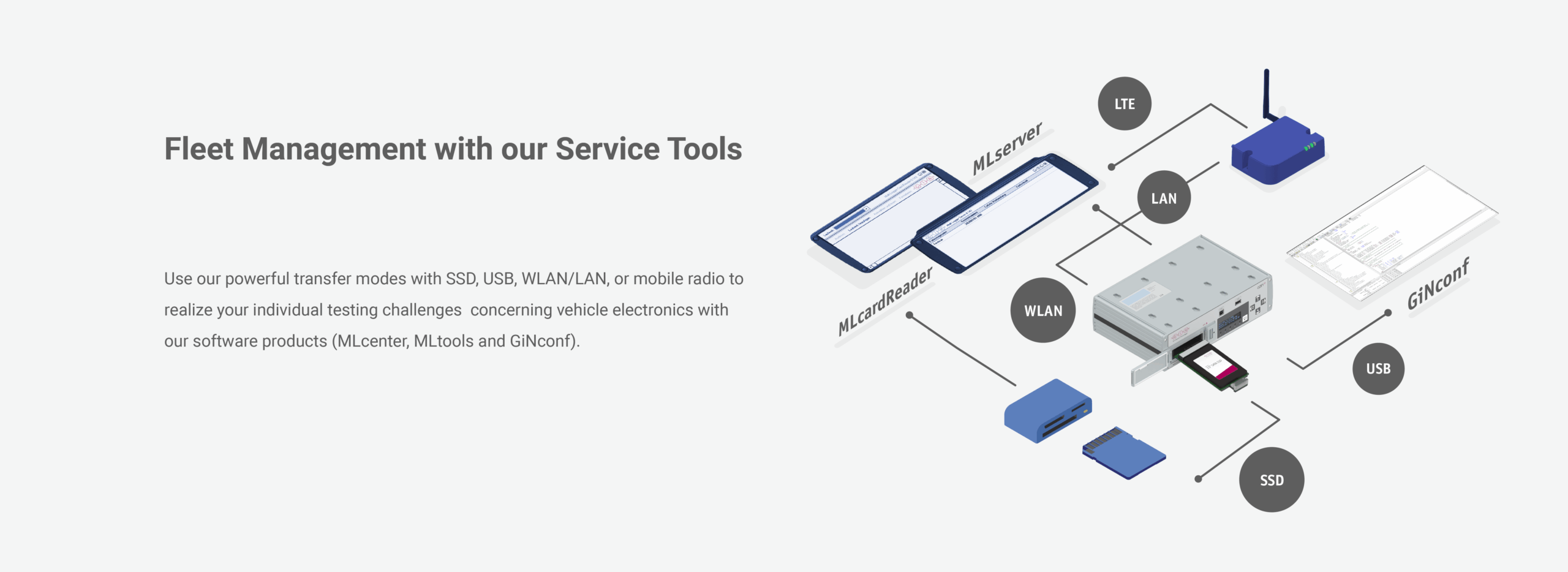

Remote maintenance via mobile network and Wi-Fi
Interfaces
Communication
Features
Logging Functions
Classifier Function
Gateway Function
Further Functions
Interfaces
- Up to 12 CAN FD interfaces
- Up to 12 CAN interfaces
- Up to 16 LIN interfaces
- Up to 13 UART interfaces
- 4 digital inputs & 4 digital outputs
- Up to 12 analog inputs
- 4 AUX connectors for connecting G.i.N. accessories
Communication
- Wireless LAN
- Mobile network (via LTE router)
- 2 USB interfaces (1 Host and 1 Device)
- 2 Ethernet interfaces
- 1 RS-232 interface
Features
- 2 Cortex-A9 Quad Core CPU
- Linux operating system with fast boot-up
- Pre-log function during system startup within max. 40 ms
- Dispatcher for monitoring the entire system
- Interactive operation via menu control
- 128 x 32 pixel OLED display
- Freely programmable (text- or graphics-based)
- 4 programmable event buttons
- 5 freely programmable LEDs
- Remote control with
- Two user-programmable buttons, e.g., for manually triggering a trigger
- Two LEDs for status indication
- Battery-backed real-time clock
Logging Functions
- Control of ring buffers via freely programmable start and stop trigger criteria with adjustable post- and pre-trigger
- Complex trigger criteria for messages, signals, inputs, buttons
- Message and signal-oriented logging
- Programmable recording filter to reduce the data to be logged (identifier or complete channel)
- Data logger functionality
- Synchronously capturing the position data of a vehicle during test drives
- Synchronously recording driver observations in audio form during test drives
- Synchronously recording high-resolution color images during test drives (e.g., dashboard or vehicle surroundings)
- Recording and analysis of digital and analog input values
- Recording the first wake-up message in sleep mode
Classifier Function
- Free definition of 0-, 1-, and 2-dimensional classification tasks
- Up to 26,000 classes per classification task
- Various types of classification:
- Minimum and maximum value of a size
- Frequency of occurrence of a criterion
- Dwell time or active time of a criterion
- Frequency of value change of a condition or signal
- Rainflow analysis for investigating material fatigue and loading processes
- No limitation on recording duration
- Storage of readout classification results in tabular form (e.g., for MS-Excel)
Gateway Function
- Exchange of CAN messages between two or more buses
- Up to 36 independent gateways
- Blocking and forwarding at the message level configurable
- Freely programmable modifications to the contents of forwarded messages
- Conversion between different CAN baud rates and/or physical layers (Low-Speed, High-Speed, etc.)
- Forwarding from LIN to CAN
Further Functions
- Timeout monitoring for messages
- Measurements on control units via XCP on CAN/CAN FD and on Ethernet, each with Seed&Key
- Control of programmable LEDs and internal and external displays
- Easy integration of DBC, LDF, and XML databases in the configuration
- Multiple export options for log files in TXT, ASC, LOG, BLF, HDF5, Matlab®, ADTF, or MDF format
- Monitoring function to monitor bus communication with CANoe or CANalyzer

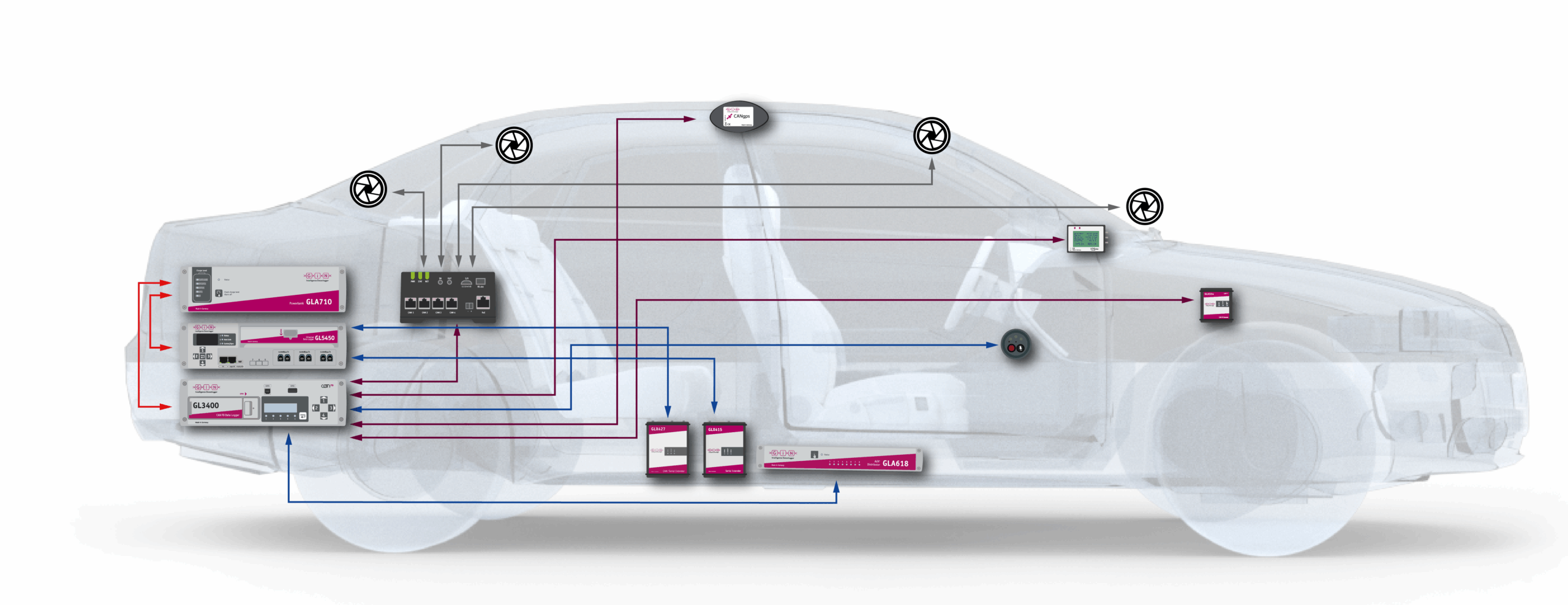

IN-VEHICLE USAGE
GLX504
For 4 additional CAN FD
close to the bus and remote
from the data logger
CASM2T3L
For triggering with sound output
and with a microphone for
voice recording
For triggering with sound output
and with a microphone for
voice recording
LOGview
LCD display with
16 independent and freely
programmable pages
HostCAM F44
Up to 2 sensor units
Up to 2 sensor units
GLA710
an uninterruptable power supply
(UPS) for G.i.N. data loggers
GL5450
Der Automotive Ethernet Logger
für 20x 100-Base T1 und
6x 1000Base T1 Ports
Der Automotive Ethernet Logger
für 20x 100-Base T1 und
6x 1000Base T1 Ports
GLX427
For 12 additional CAN interfaces
and up to 15 serial interfaces
GLX415
Für weitere 15 LIN Bussysteme
GLA618
Der AUX+-Verteiler mit 8 AUX+Out-Anschlüssen
CONNECTIVITY
GLA618
AUX+ splitter for simultaneous connection of multiple extension devices to one data logger
To Product
GLA710
Device for an uninterruptible supply
To Product
GLX415
For further 15 LIN interfaces
To Product
GLX427
For a further 12 CAN interfaces and up to 15 serial interfaces
To Product
GLX504
For 4 further CAN FD interfaces
To Product
CAN-RX-Repeater
For receiving data via 4 CAN FD channels
To Product
Mounting plate
For attaching the GiN products equipped
with the new GiN case system
To product

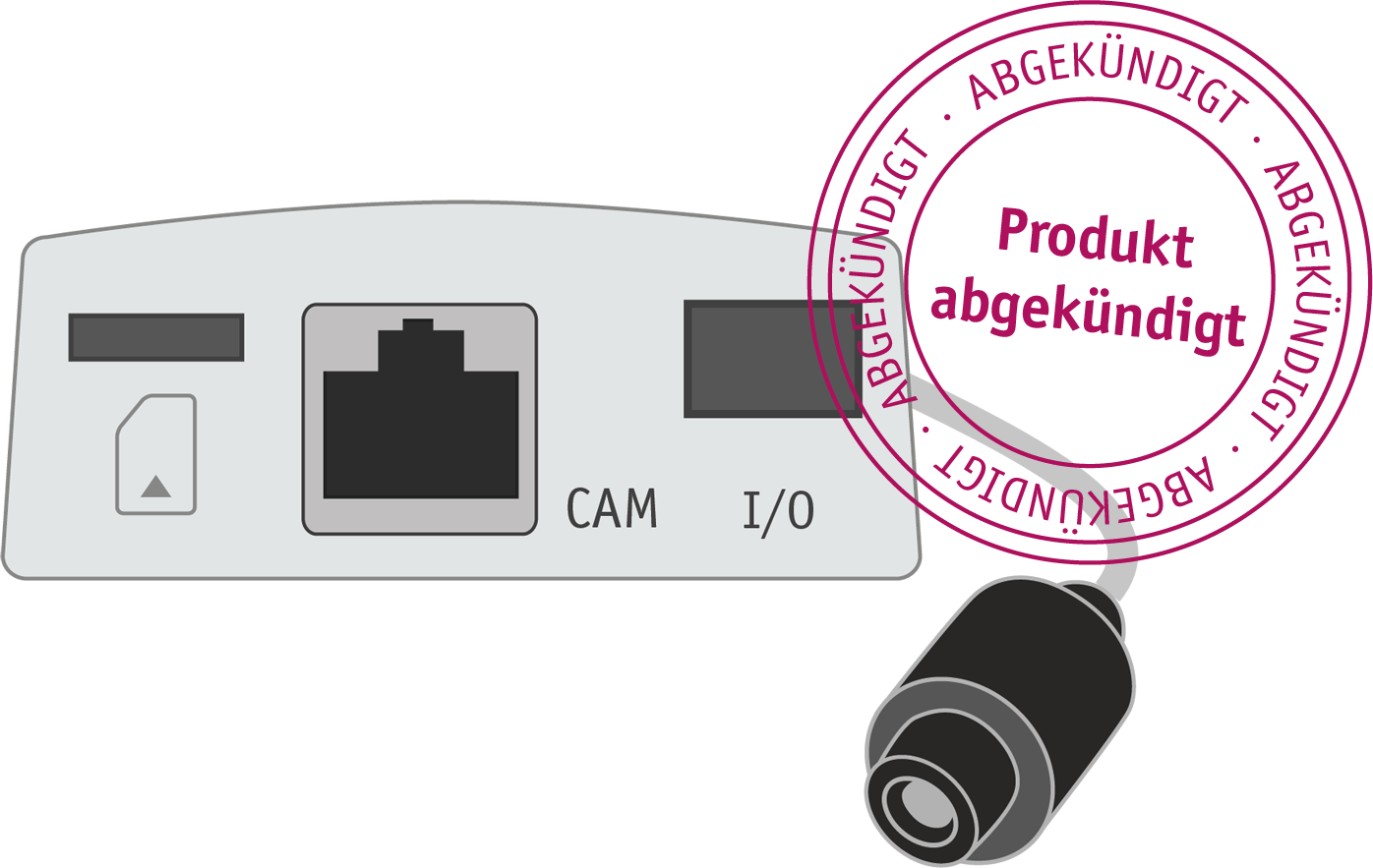

HostCAM F44
With up to 4 sensor units for recording pictures and image sequences on data loggers
To Product
LINprobe
2 x LIN to CAN converter
To Product
LOGview
Freely configurable, controllable
display with page switching and event triggering via push button
To Product

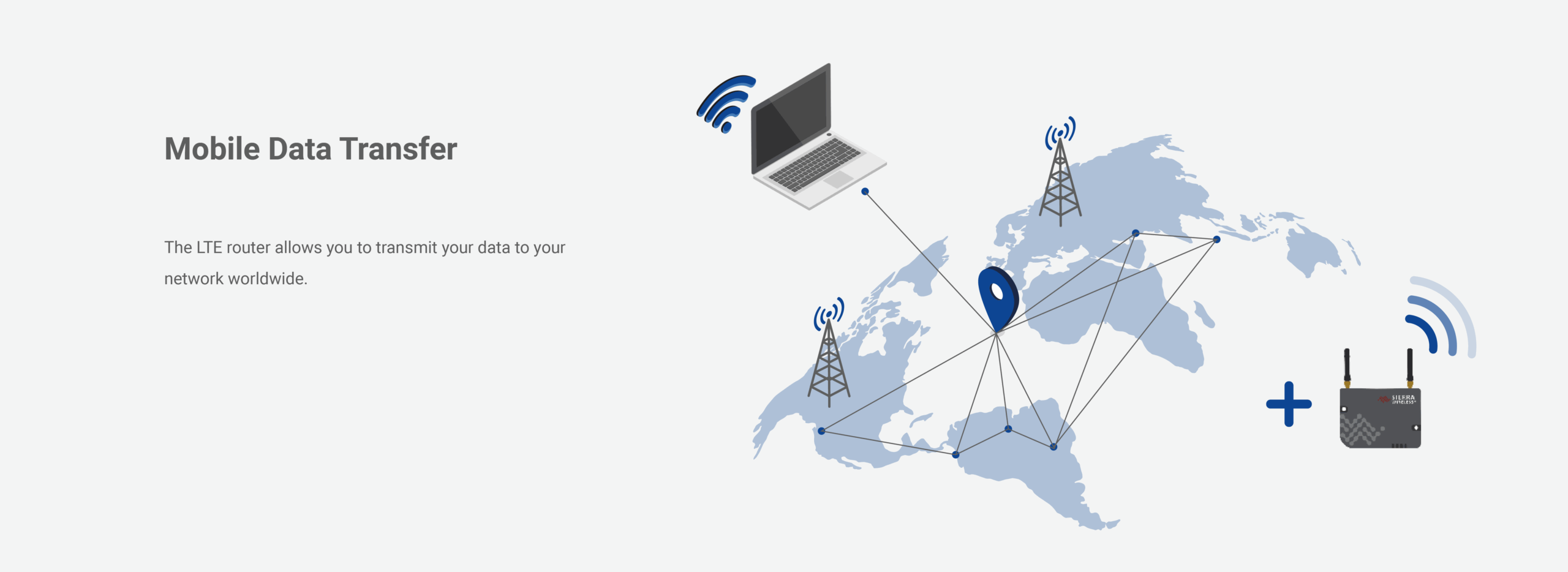

LTE Router
LTE router for mobile data transmission
To Product
CAS1T3L
Compact handset for displaying conditions via 3 LEDs and for triggering events via 1 push-button with additional sound output.
To Product
CASM2T3L
Compact handset for displaying conditions, triggering events and for voice recording as well as sound output.
To Product
CA8DL
Compact monitor for displaying digital signals and conditions via 8 LEDs
To Product
CA4T4DL
Triggering events via 4 push buttons and calling up states via 4 LEDs
To Product
