GL1000 Series
The GL1000 is our smallest data logger, which is characterized by its high storage capacity, easy handling as well as the extensive configuration options.
The GL1000 and its IP-65 protected sibling GL1010 are predestined for use in harsh environment.
Both data loggers have a low power requirement and their technical data make both products very suitable for mobile use – especially for concealed installation.
The GL1000 and its IP-65 protected sibling GL1010 are predestined for use in harsh environment.
Both data loggers have a low power requirement and their technical data make both products very suitable for mobile use – especially for concealed installation.
Information sheet
All key details about the GL1000 series can be found in our information sheet.
AREAS OF APPLICATION
- Automated logging
- Rest bus simulation
- Gateway functionality with optional signal manipulation
- Fleet operation and monitoring
- Switching to sleep mode when the bus is idle
- Wake-up the data logger via bus activity
- Automated triggers (e.g. for error memory entries)
- CCP/XCP on CAN
- Vehicle diagnosis
- Customer specific communication protocols
- Fleet operation and observation
- Field testing
- Summer and winter testing
- Supervising data logger measuring systems on-site with the customer
- Converting measurement tasks into data logger configurations
- Tracking of problems in the vehicle
- Analysis of logged data from the vehicle
- Customer specific solutions for specific requirements
- Implementing measuring systems in the vehicle
Small, compact and also robust
Low power consumption
Offers a wide range of configuration options
Fast data readout ability with various export options of logged data
High storage capacity with easily exchangeable SD card
Interfaces
Features
Logging Function
Gateway Function
Further Functions
Interfaces
- 2 CAN channels
- 6 virtual CAN channels
- 2 LIN channels
- 1 UART channel
- 1 High-Speed USB 2.0 interface for configuration and data transfer
- 2 digital inputs and outputs
- 4 analoge inputs
Features
- Freely programmable data logger
- Interchangeable SD card with up to 16GB storage capacity
- Sleep mode with automatic wake-up on receipt of a message
- Additional “Terminal 15” or “Wake” line for wake-up when the ignition is switched on
- Wake-up clock for cyclic awakening during long-term measurement
- 4 programmable LEDs for status indication
- 1 LED to indicate USB status
- Integrated acoustic signal generator
- Battery-backed real-time clock
- Automotive supply and temperature range
- Waterproof to IP65 variant(GL1010)
Logging Function
- Ring buffer control via freely programmable start and stop trigger
- Complex trigger criteria on messages, signals, inputs, keys
- Message- and signal-related logging
- Synchronous recording of a vehicle´s position data during the test drive
- Recording and evaluation of digital and analogue
Gateway Function
- Exchange of CAN data between two or more buses
- Blocking and forwarding configurable at message level
- Freely programmable changes to the contents of messages to be forwarded
- Conversion between different CAN baud rates and/or physical layers (low-speed, hogh-speed etc.)
- Forwarding from LIN to CAN
Further Functions
- Sending on CAN
- Timeout monitoring of messages
- Measurements on control devices using CCP/XCP on CAN Seed&Key
- Triggering of programmable LEDs and external display
- Simple integration of DBC and LDF databases in the configuration
- Export options of log data to TXT, ASC, LOG, BLF, HDF5, Matlab®, ADTF or MDF format

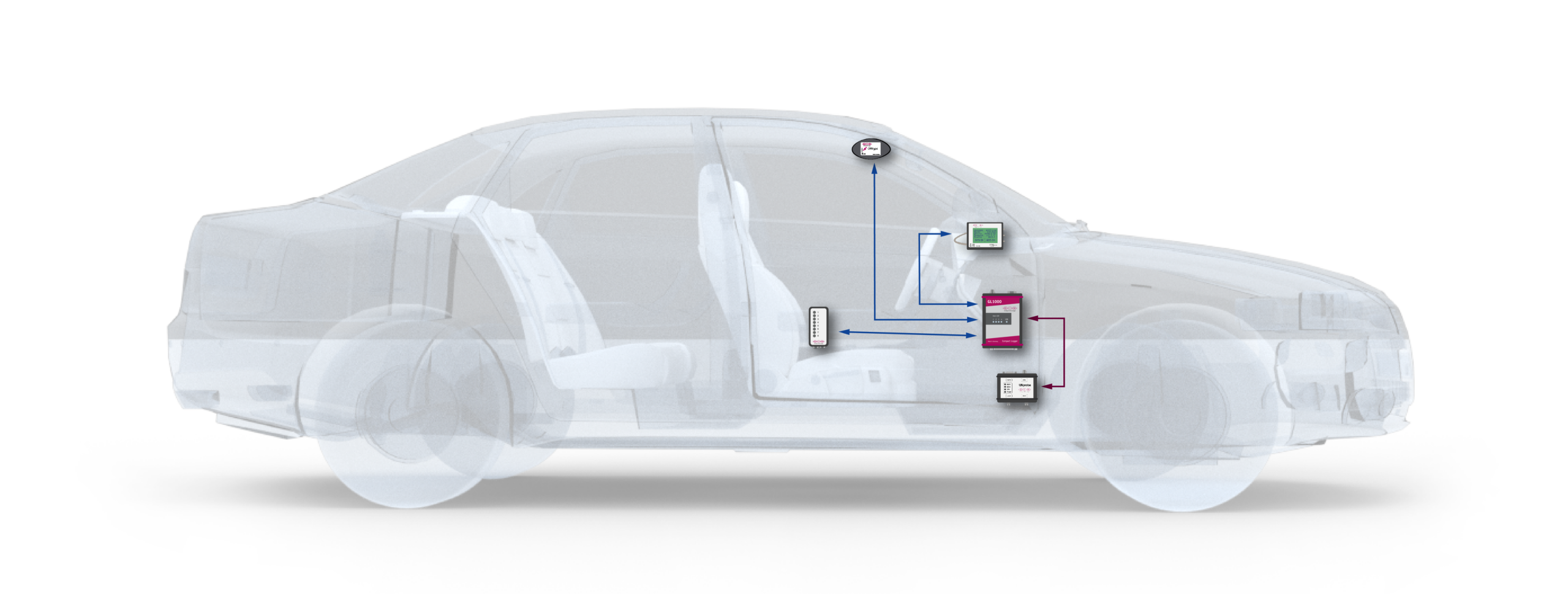

IN-VEHICLE USAGE
CONNECTIVITY
LINprobe
2 x LIN to CAN converter
To product
LOGview
Freely configurable, controllable display with page switching and event triggering via push button
To product
CA8DL
Compact monitor for displaying digital signals and conditions via 8 LEDs
To product
CA4T4DL
Triggering events via 4 push buttons and calling up states via 4 LEDs
To product
DOWNLOAD AREA
Please log in to access the download area.
| Title | Size | Date added | Download |
|---|---|---|---|
| GiNconf configuration program V. 1.5.0100 (64 Bit) | 427.23 MB | 05-12-2025 | |
| Visual LTL (V. 3.22.0.0) | 111.02 MB | 01-12-2025 | |
| LTL_programming_Manual_E | 3.91 MB | 01-12-2025 | |
| LogGraph analysis program (V. 4.3) | 6.31 MB | 26-06-2024 | |
| GL1000_Manual_E | 1.46 MB | 01-12-2025 | |
| LogGraph_Manual_E | 1.79 MB | 01-12-2025 | |
| VisualLTL_Manual_E | 7.41 MB | 01-12-2025 | |
| GiNconf_Manual_E | 2.77 MB | 01-12-2025 | |
| GL1000 Supplier inquiry device | 195.78 KB | 10-12-2021 | |
| GL1000 Supplier inquiry Panasonic | 263.73 KB | 10-12-2021 |
