GL2400/GL2410
The GL2400 data logger includes all the advantages of the GL2000 series and additionally supports CAN FD. This allows signals from the CAN FD bus system to be recorded. Both the ISO and Non-ISO (Bosch) standards are supported.

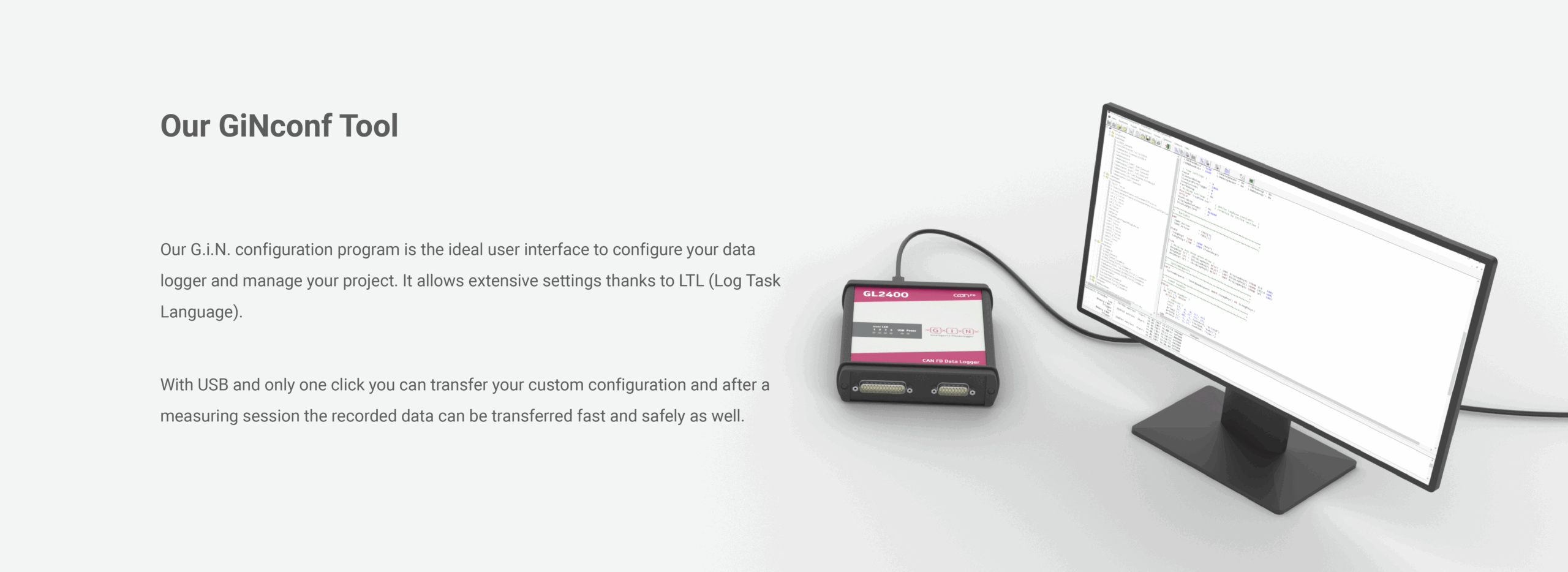

Due to its compact and robust design, the GL2400 can be securely and inconspicuously mounted almost anywhere in the vehicle. The included software package is compatible with the entire G.i.N. data logger family and offers the powerful LTL functionality for filtering, triggering, and real-time data processing.
Information Sheet
GL2400: All Key Details at a Glance –
Get Informed Now!
AREAS OF APPLICATION
- Automated logging
- Rest bus simulation
- Gateway functionality with optional signal manipulation
- Automated data transmission
- Automated reconfiguration
- Fleet operation and monitoring
- Switching to Sleep mode when the bus is idle
- Wake-up the data logger via bus activity
- Automated triggers (e.g. for error memory entries)
- CCP/XCP on CAN
- Vehicle diagnostics
- Customer specific communication protocols
- Fleet operation and observation
- Field testing
- Summer and winter testing
- Damage analysis (rainflow classifications)
- Online data transfer
- Online configuration transfer
- Online signal representation and analysis
- Supervising data logger measuring systems on-site with the customer
- Converting measurement tasks into data logger configurations
- Tracking of problems in the vehicle
- Analysis of logged data from the vehicle
- Customer specific solutions for specific requirements
- Implementing measuring systems in the vehicle
Supports ISO & Non-ISO (Bosch) standard
Sending on CAN and CAN FD

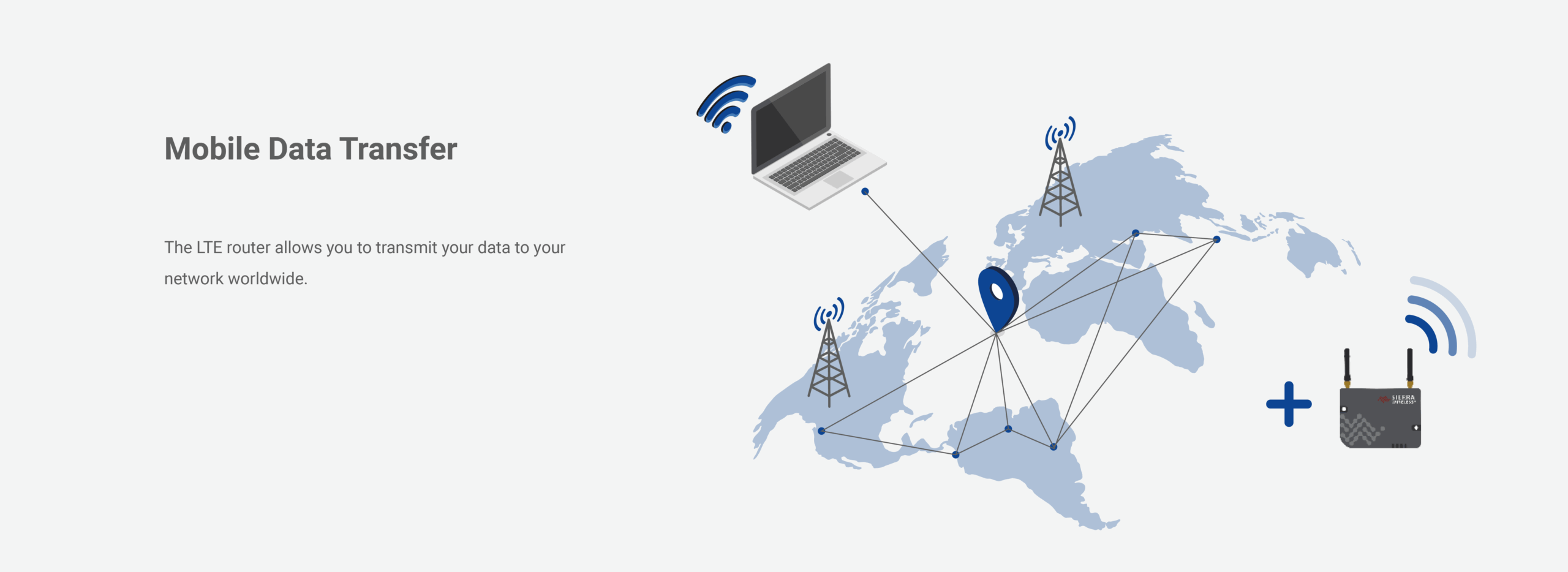

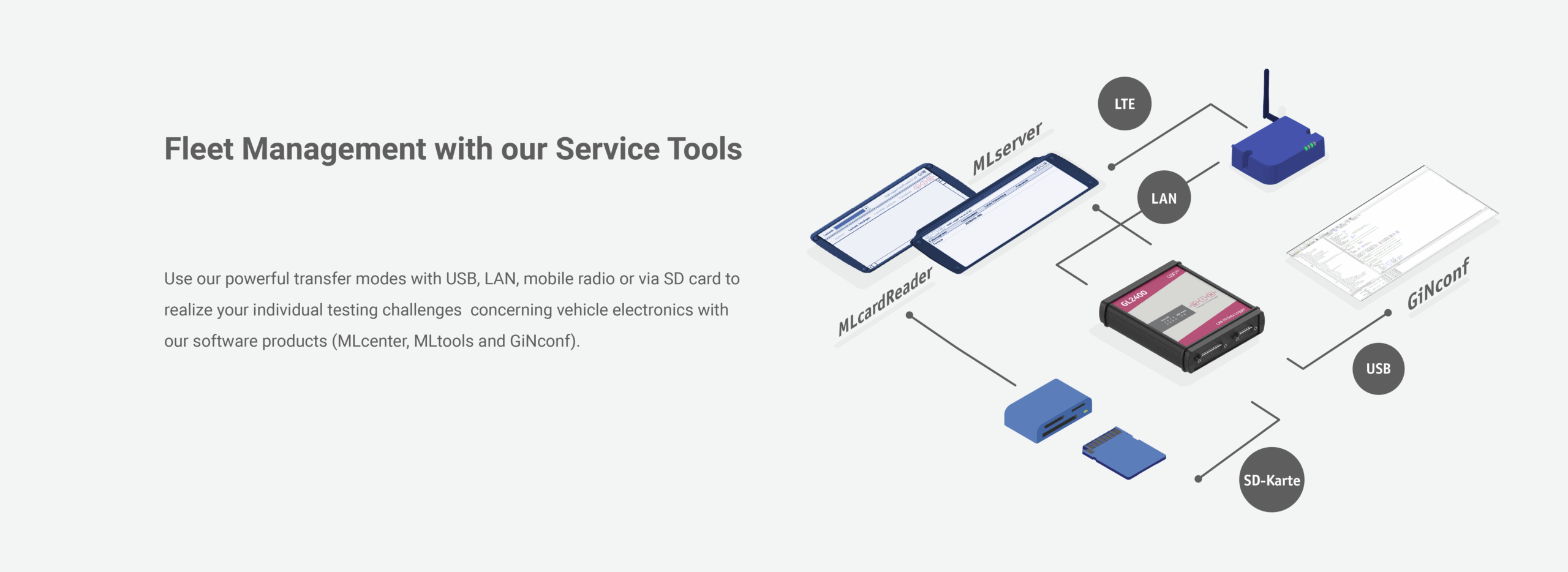

Location-independent and fast data access due to the mobile communication
High storage capacity with easily exchangeable SD card
GPS receiver via serial interface or via CAN
Interfaces
Communication
Features
Logging Function
Classifier Function
Gateway Function
Further Functions
Interfaces
- 4 CAN FD channels
- 1 Standard CAN 2.0
- 2 LIN interfaces
- 1 UART interface
- 1 serial interface for connecting the serial GPS mouse
- 4 digital inputs and outputs
- 4 analog inputs
- 1 AUX connector for connecting external accessories via High-Speed CAN
Communication
- Mobile network (via LTE router)
- 1 USB interface (Mass Storage Device)
- 1 Ethernet interface
Features
- Freely programmable data logger
- Replaceable SD card with up to 32 GB of storage capacity
- Remote control with
– two user-programmable buttons, e.g., for manually triggering a trigger and
– two LEDs for status indication - Sleep mode with automatic wake-up upon message reception.
- Additional “Klemme 15” or “Wake” line for wake-up when the ignition is switched on
- Wake-up clock for cyclic wake-up during long-term measurements
- 1 shutdown button
- 4 user-programmable LEDs
- 1 LED for USB status indication
- User-programmable acoustic signal emitter
- Battery-backed real-time clock
- Automotive-grade power supply and temperature range
Logging Function
- Control of the ring buffer via freely programmable start and stop trigger criteria with adjustable post- and pre-trigger
- Complex trigger criteria based on messages, signals, inputs, buttons
- Message and signal-oriented logging
- Black box function
- Synchronous capture of vehicle position data during test drives
- Synchronous recording of driver observations in audio form during test drives
- Recording and evaluation of digital and analog input values
- Recording of the first wake-up message in sleep mode
Classifier Function
- Free definition of 0-, 1-, and 2-dimensional classification tasks
- Up to 25,000 classes per classification task
- Various classification types:
– Minimum and maximum value of a parameter
– Frequency of occurrence of a criterion
– Duration or active time of a criterion
– Frequency of value change of a condition or signal - Rainflow analysis
- No recording duration limitation
- Storage of read classification results in table format
Gateway Function
- Exchange of CAN FD messages between two or more buses
- Up to 6 independent gateways
- Blocking and forwarding adjustable at the message level
- Freely programmable changes to the content of forwarded messages
- Implementation between different CAN baud rates and/or physical layers (Low-Speed, High-Speed, etc.)
- Forwarding from LIN to CAN
Further Functions
- Sending on CAN FD
- Timeout monitoring of messages
- Measurements on control devices using CCP/XCP on CAN FD with Seed&Key
- Triggering of programmable LEDs and external display
- Simple integration of DBC and LDF databases in the configuration
- Export options of log data to TXT, ASC, LOG, BLF, HDF5, Matlab® or MDF format
- Monitoring function of the bus communication with CANoe or CANalyzer
In-Vehicle Usage
LOGview
LCD display with
16 independent and freely
programmable pages
LINprobe
CAN/LIN gateway
CA8DL
Compact monitor for digital
display of states via 8 LEDs
CANgps
Determines and sends the
position data via CAN or
RS-232 to the data logger
LTE Router
for remote data transmission
VoCAN
Compact handheld device for
voice recording and
voice playback
Compact handheld device for
voice recording and
voice playback
CASM2T3L
For triggering with tone output
and with a microphone
for voice recording
For triggering with tone output
and with a microphone
for voice recording
CONNECTIVITY
LOGview
Freely configurable, controllable display with page switching and event triggering via button
To Product
CA8DL
Compact monitor for digital display of states via 8 LEDs
To Product
CA4T4DL
Triggering events via 4 buttons and retrieving states via 4 LEDs
To Product
CAS1T3L
Compact handheld device for displaying states via 3 LEDs and triggering events via 1 button with additional tone output.
To Product
CASM2T3L
Compact handheld device for displaying states, triggering events, and for voice recording as well as tone output.
To Product
CANgps
GPS receiver on CAN
To Product
LTE Router
LTE router for mobile data transmission
To Product
LINprobe
2 x LIN to CAN converter
To Product
